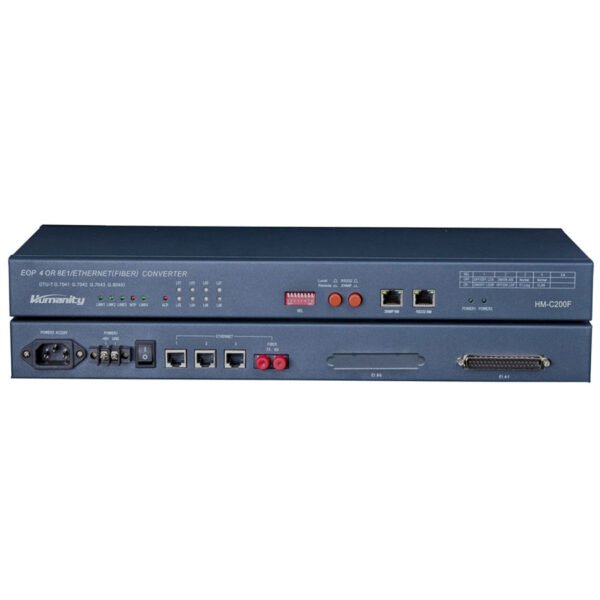

HM-C200F 4E1 to 4FE(one fiber) Converter
Model: HM-C200F
Function: Ethernet over 4E1 solution
-
Courier delivery
Our courier will deliver to the specified address
5-7 Working Days
From $40

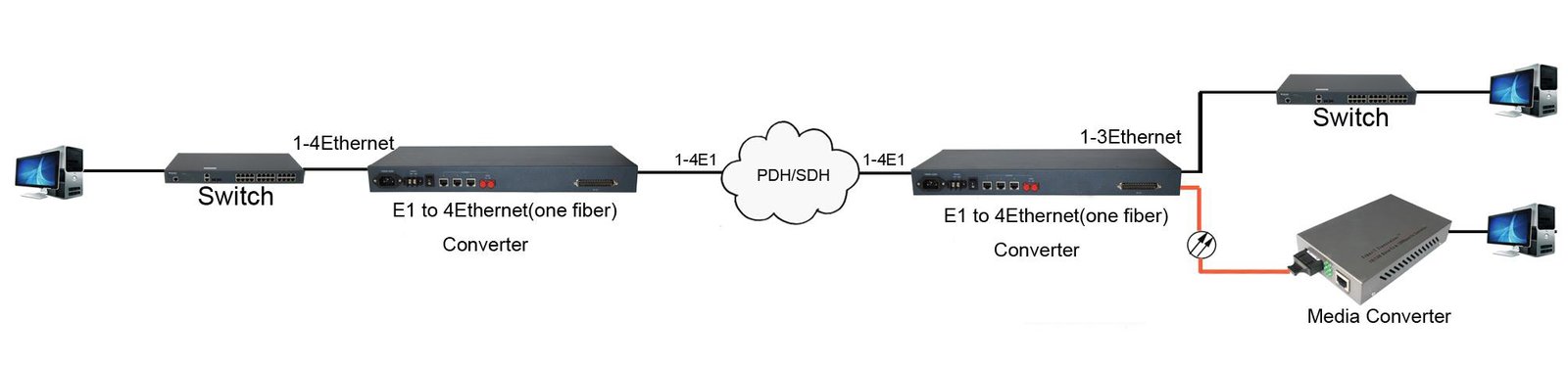

Humanity HM-C200F 4E1 to Ethernet converter realizes Ethernet transmission over 4E1.
This model complies with GFP, VCAT, LCAS and able to work with third party device followed same protocol.
Main Features
- Realizes Ethernet transmission over 1-4E1
- Comply with ITU-T G.7041, G.7042, G.7043, G.8040. It’s able to work with third party device followed same standard ITU protocol.
E1:
4E1
Connector: DB37
Impedance: unbalanced 75Ω or balanced 120Ω
Line code: HDB3
Comply with ITU-T G.703 standard
Jitter comply with ITU-T G.823 standard
Ethernet:
4xEthernet with VLAN
3x electrical Ethernet with RJ45
1xoptical Ethernet with FC/SC
Comply with IEEE802.3, IEEE802.1Q
Auto adapt 10/100M, full/half duplex
Support MDI/MDIX
Support flow control
MAC address table capability: 1024
MAC address table aging time: 5 minutes
Minimum frame length: 64bytes
Maximum frame length: 1916bytes
Button:
Local/remote alarm choice
Console/SNMP choice
Management:
Default with console management
SNMP option, please state when in order
Power & Environment:
AC and DC power
Less than 10W
Working temperature: -5 ~ 50℃
Relative humidity: ≤95%, non-condensing
