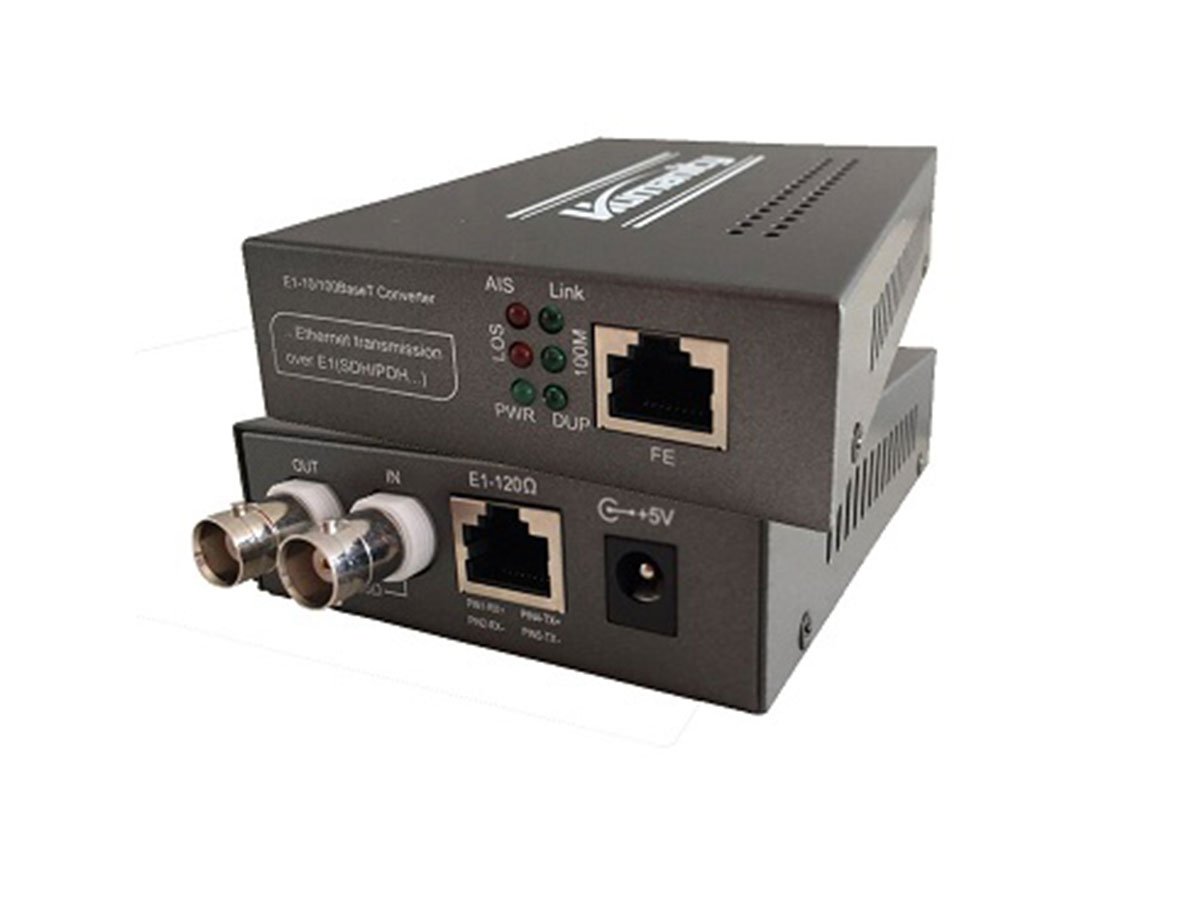

mini E1 to Ethernet converter
Model: HM-C108W
Function: mini Ethernet over E1 solution
-
Courier delivery
Our courier will deliver to the specified address
5-7 Working Days
From $40

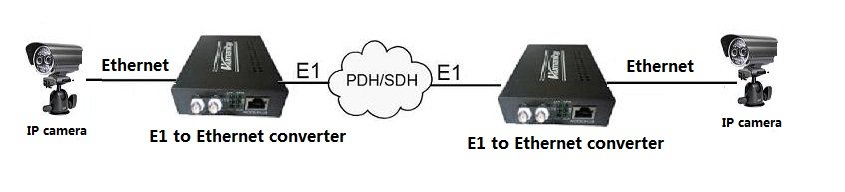

Humanity HM-C108W mini E1 to Ethernet Converter realizes Ethernet transmission over E1 at the bandwidth of 2048Kbps.
Plug and play, without any setting or debugging work.
Main Features
- Comply with ITU-T G.703
- Unframe E1 with 2048kbps
- AC power
- Power module support thunder protection with isolate 1500V
LED indicators:
PWR
Ethernet: LINK, DUP
E1: LOS, AIS

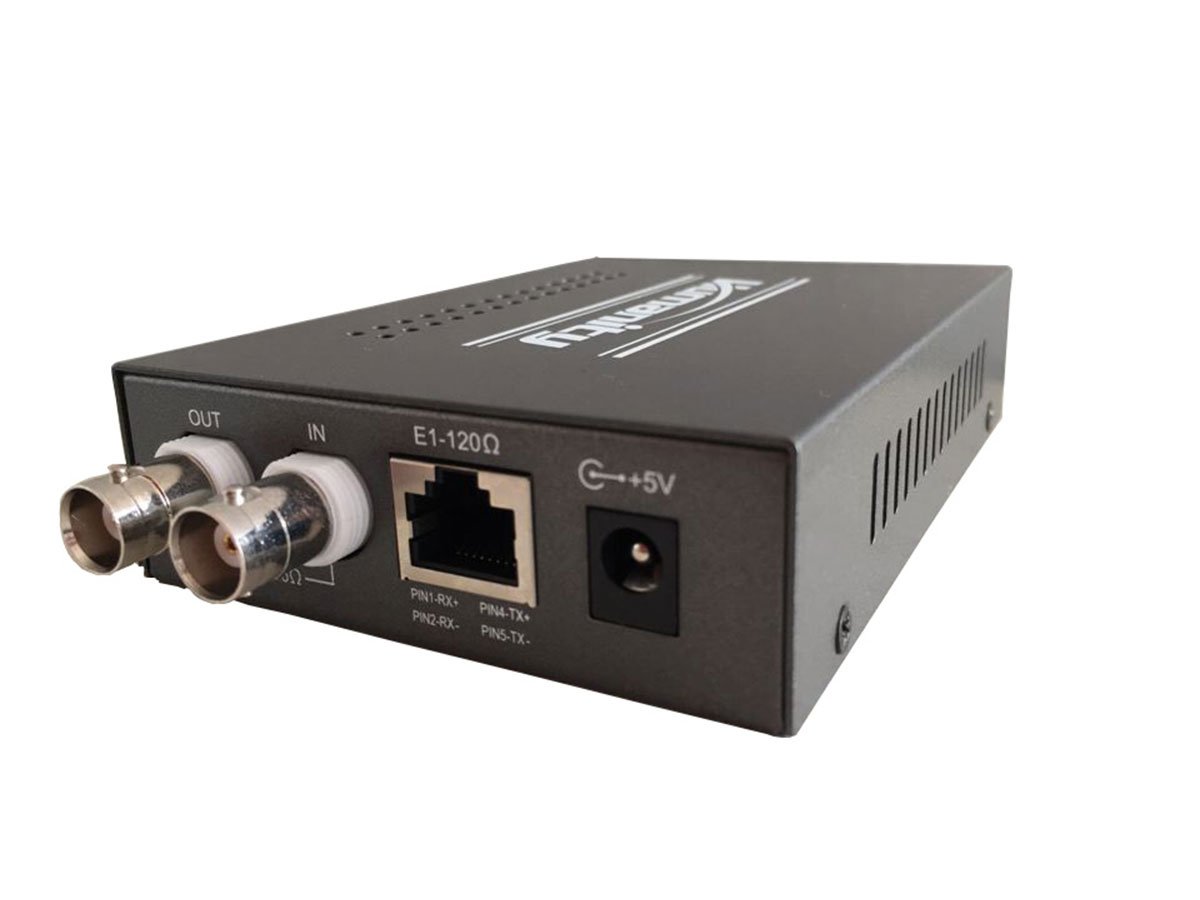

E1:
One E1 offered
Connector: RJ45 and BNC
Impedance: 120ohm and 75ohm
Line code: HDB3
Comply with ITU-T G.703 standard
Jitter comply with ITU-T G.823 standard

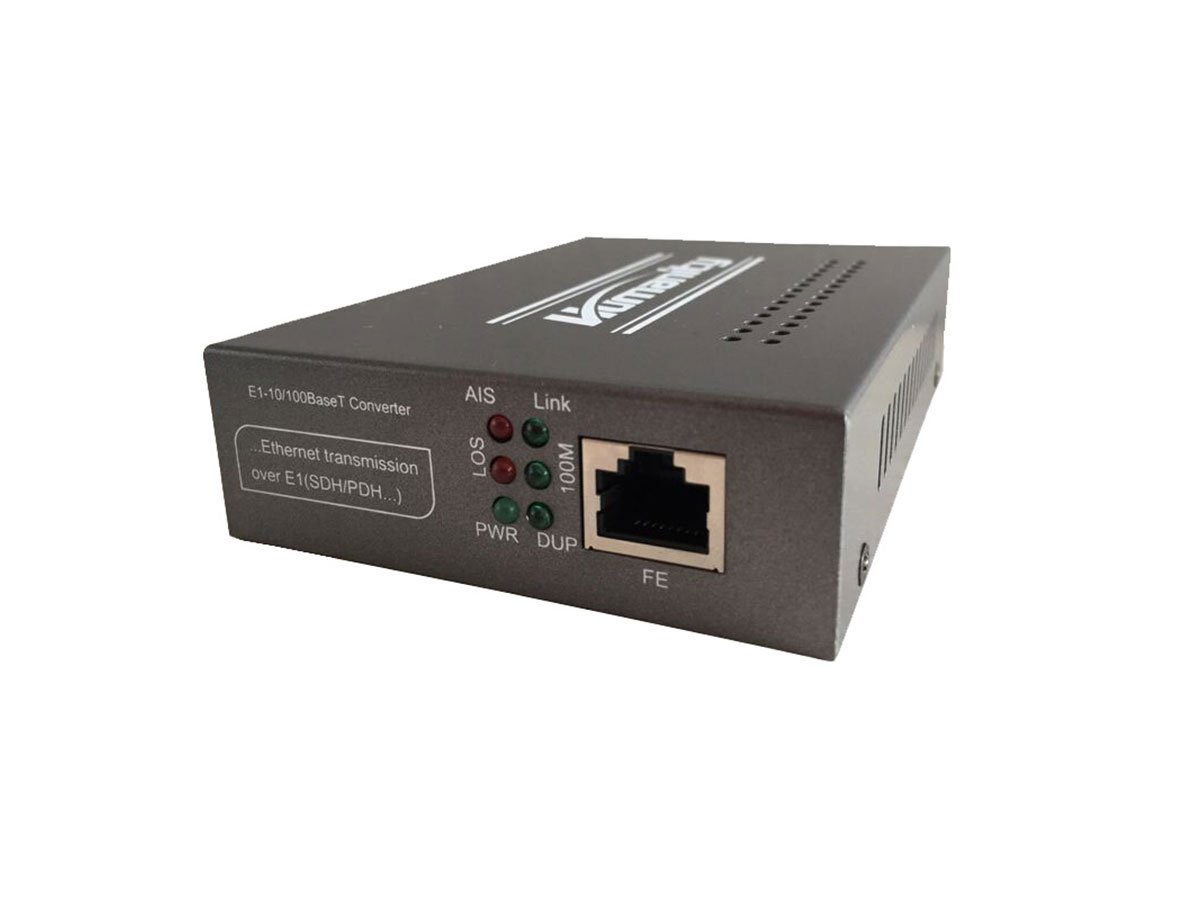

Ethernet:
One Ethernet interface
Auto adapt 10/100M, full/half duplex
Support MDI/MDIX
Connector: RJ45
Power & Environment:
AC or DC single power
Working temperature: 0 ~ 70℃
Relative humidity: ≤90%(25℃)
Power consumption: <5W
